pfc::world::World< T > Struct Template Reference

Represents the global simulation domain (the "world"). More...

#include <world.hpp>

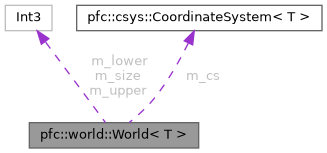

Collaboration diagram for pfc::world::World< T >:

Public Member Functions
	World (const Int3 &lower, const Int3 &upper, const CoordinateSystem< T > &cs)
	Constructs a World object.
bool	operator== (const World &other) const noexcept
	Equality operator.
bool	operator!= (const World &other) const noexcept
	Inequality operator.

Public Attributes
const Int3	m_lower
	Lower index bounds.
const Int3	m_upper
	Upper index bounds.
const Int3	m_size
	Grid dimensions: {nx, ny, nz}.
const CoordinateSystem< T >	m_cs
	Coordinate system.

Friends
template<typename T_ >
std::ostream &	operator<< (std::ostream &os, const World< T_ > &w) noexcept
	Stream output operator.

Detailed Description

template<typename T>
struct pfc::world::World< T >

Represents the global simulation domain (the "world").

The World class defines the size of the global simulation domain and coordinate system. It is a purely functional object with no mutable state, constructed once and immutable thereafter. This design enhances correctness, thread safety, testability, and reproducibility.

Coordinate system is defined via a tag-based programming approach, allowing different coordinate systems (Cartesian, Polar, Cylindrical) without creating a separate class for each. We default to 3D Cartesian as it's most common.

Template Parameters

T	Coordinate system tag (e.g., CartesianTag)

See also

world_factory.hpp for construction

world_queries.hpp for accessing properties

Examples

/home/runner/work/OpenPFC/OpenPFC/examples/17_custom_coordinate_system.cpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/core/decomposition.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/results_writer.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/results_writers/vtk_writer.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/time.hpp, 01_world_basics.cpp, 02_domain_decomposition.cpp, 02_fft_transforms.cpp, 03_parallel_fft.cpp, 03_simulator_workflow.cpp, 04_diffusion_model.cpp, 05_simulator.cpp, 06_multi_index.cpp, 07_array.cpp, 08_discrete_fields.cpp, Array-style, Basic, Complex, Coordinate-space, Creating, Full, Functional, Integration, Interpolation, MPI, Reading, Simple, world.cpp, and world_strong_types_example.cpp.

Constructor & Destructor Documentation

World()

template<typename T >

pfc::world::World< T >::World ( const Int3 &  lower, const Int3 &  upper, const CoordinateSystem< T > &  cs  )

explicit

Constructs a World object.

Parameters

lower	Lower index bounds of the world.
upper	Upper index bounds of the world.
cs	Coordinate system.

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/core/decomposition.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/fft.hpp, and /home/runner/work/OpenPFC/OpenPFC/include/openpfc/model.hpp.

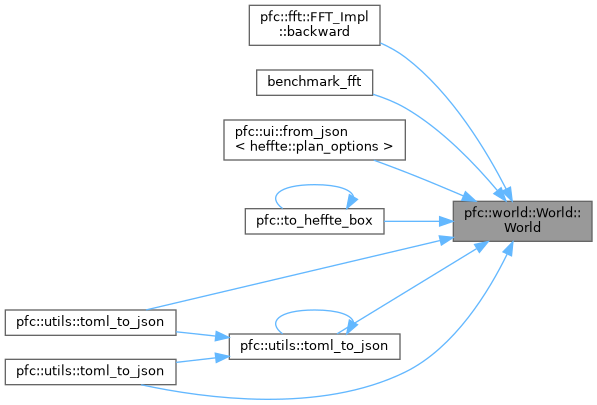

Here is the caller graph for this function:

Member Function Documentation

operator!=()

template<typename T >

bool pfc::world::World< T >::operator!= ( const World< T > &  other ) const

inlinenoexcept

Inequality operator.

Parameters

other

Another World object.

Returns

True if not equal, false otherwise.

operator==()

template<typename T >

bool pfc::world::World< T >::operator== ( const World< T > &  other ) const

inlinenoexcept

Equality operator.

Parameters

other

Another World object.

Returns

True if equal, false otherwise.

Friends And Related Symbol Documentation

operator<<

template<typename T >

template<typename T_ >

std::ostream & operator<< ( std::ostream &  os, const World< T_ > &  w  )

friend

Stream output operator.

Parameters

os	Output stream.
w	World object.

Returns

Reference to the output stream.

---

The documentation for this struct was generated from the following file:

• openpfc/core/world.hpp
