simulator.hpp File Reference

Simulation orchestration and time integration loop. More...

#include "core/world.hpp"
#include "field_modifier.hpp"
#include "model.hpp"
#include "results_writer.hpp"
#include "time.hpp"
#include <iostream>
#include <memory>
#include <unordered_map>

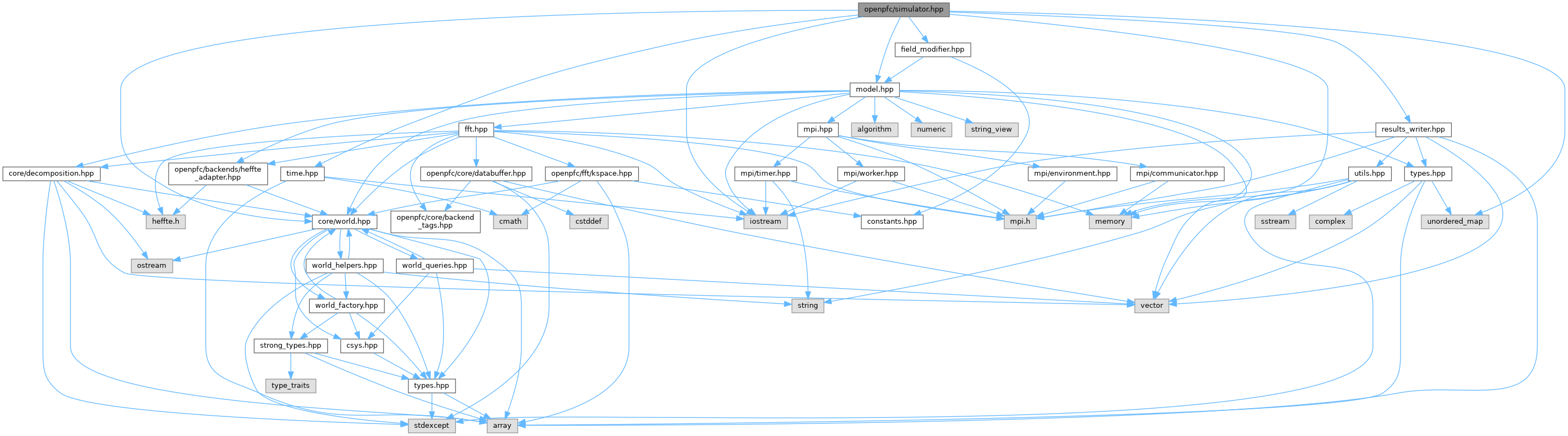

Include dependency graph for simulator.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	pfc::Simulator
	The Simulator class is responsible for running the simulation of the model. More...

Functions
void	pfc::step (class Simulator &s, Model &m)

Detailed Description

Simulation orchestration and time integration loop.

This file defines the Simulator class, which orchestrates the execution of phase-field simulations in OpenPFC. The Simulator manages:

• Time integration loop (calling Model::step repeatedly)
• Initial condition application via FieldModifiers
• Boundary condition enforcement
• Results output scheduling via ResultsWriters
• Simulation checkpointing and restart

The Simulator acts as the "main loop" that coordinates all simulation components:

// Typical simulation setup
MyPhysicsModel model(fft, world);
pfc::Time time({0.0, 100.0, 0.1}, 1.0);  // t0, t1, dt, saveat
pfc::Simulator sim(model, time);

// Add initial conditions
sim.add_initial_condition(std::make_unique<pfc::Constant>(0.5));

// Add results writer
sim.add_results_writer("output", std::make_unique<pfc::BinaryWriter>("data.bin"));

// Run simulation
sim.run();

This file is part of the Simulation Control module, providing the main execution framework for time-dependent simulations.

See also

model.hpp for physics model implementation

time.hpp for time state management

field_modifier.hpp for initial/boundary conditions

results_writer.hpp for output handling
