pfc::Model Class Reference

The Model class represents the physics model for simulations in OpenPFC. More...

#include <model.hpp>

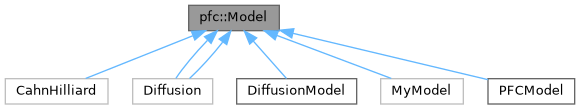

Inheritance diagram for pfc::Model:

Public Member Functions
	~Model ()
	Destroy the Model object.
	Model (FFT &fft, const World &world)
	Model (const Model &)=delete
	Disable copy constructor.
Model &	operator= (const Model &)=delete
	Disable copy assignment operator.
bool	is_rank0 () const noexcept
	Check if current MPI rank is 0.
const World &	get_world () const noexcept
	Get the decomposition object associated with the model.
FFT &	get_fft () noexcept
virtual void	step (double t)=0
virtual void	initialize (double dt)=0
virtual size_t	get_allocated_memory_bytes () const
bool	has_real_field (std::string_view field_name) const noexcept
	Check if the model has a real-valued field with the given name.
void	add_real_field (std::string_view name, RealField &field)
bool	has_complex_field (std::string_view field_name) const noexcept
void	add_complex_field (std::string_view name, ComplexField &field)
RealField &	get_real_field (std::string_view name)
const RealField &	get_real_field (std::string_view name) const
	Retrieve a registered real-valued field by name (const version)
ComplexField &	get_complex_field (std::string_view name)
const ComplexField &	get_complex_field (std::string_view name) const
	Retrieve a registered complex-valued field by name (const version)
void	add_field (const std::string &name, RealField &field)
	Add a field to the model.
void	add_field (const std::string &name, ComplexField &field)
	Add a field to the model.
bool	has_field (std::string_view field_name) const noexcept
virtual Field &	get_field ()
	Get a reference to the default primary unknown field.

Detailed Description

The Model class represents the physics model for simulations in OpenPFC.

The Model class is responsible for introducing the physics to the simulation model. Users can override the initialize and step functions to define their own functionality and implement specific physics for their simulations.

The initialize function is called at the beginning of the simulation and is used to allocate arrays, pre-calculate operators used in time integration, and perform other necessary initialization tasks.

The step function is called sequentially during the time integration process. OpenPFC currently uses a semi-implicit time integration scheme, where the linear part is solved implicitly and the non-linear part is solved explicitly.

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/utils/field_iteration.hpp, 03_simulator_workflow.cpp, 04_diffusion_model.cpp, 05_simulator.cpp, Accessing, Integration, and Space-time.

Member Function Documentation

add_field() [1/2]

void pfc::Model::add_field ( const std::string &  name, ComplexField &  field  )

inline

Add a field to the model.

Parameters

name	Name of the field
field	Reference to the ComplexField object representing the field

add_field() [2/2]

void pfc::Model::add_field ( const std::string &  name, RealField &  field  )

inline

Add a field to the model.

Parameters

name	Name of the field
field	Reference to the RealField object representing the field

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/model.hpp.

get_complex_field()

const ComplexField & pfc::Model::get_complex_field ( std::string_view  name ) const

inline

Retrieve a registered complex-valued field by name (const version)

Returns a const reference to a previously registered complex field for reading.

Parameters

name	Name of the field to retrieve

Returns

Const reference to the ComplexField object

Exceptions

std::out_of_range

if field name not registered

See also

get_complex_field() for non-const version

get_field()

virtual Field & pfc::Model::get_field ( )

inlinevirtual

Get a reference to the default primary unknown field.

This is deprecated function and will likely be removed in future.

Returns

Reference to the RealField called "default"

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/model.hpp, and /home/runner/work/OpenPFC/OpenPFC/include/openpfc/simulator.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

get_real_field()

const RealField & pfc::Model::get_real_field ( std::string_view  name ) const

inline

Retrieve a registered real-valued field by name (const version)

Returns a const reference to a previously registered field for reading.

Parameters

name	Name of the field to retrieve

Returns

Const reference to the RealField object

Exceptions

std::out_of_range

if field name not registered

See also

get_real_field() for non-const version

get_world()

const World & pfc::Model::get_world ( ) const

inlinenoexcept

Get the decomposition object associated with the model.

Returns

Reference to the Decomposition object

Get the world object associated with the model.

Returns

Reference to the World object

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/model.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/simulator.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/utils/field_iteration.hpp, 03_simulator_workflow.cpp, 04_diffusion_model.cpp, 05_simulator.cpp, and Space-time.

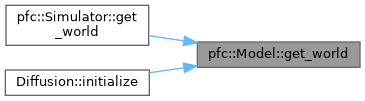

Here is the caller graph for this function:

has_real_field()

bool pfc::Model::has_real_field ( std::string_view  field_name ) const

inlinenoexcept

Check if the model has a real-valued field with the given name.

Parameters

field_name

Name of the field to check

Returns

True if the field exists, False otherwise

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/model.hpp.

Here is the caller graph for this function:

initialize()

virtual void pfc::Model::initialize ( double  dt )

pure virtual

Implemented in PFCModel, and Diffusion.

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/simulator.hpp.

is_rank0()

bool pfc::Model::is_rank0 ( ) const

inlinenoexcept

Check if current MPI rank is 0.

Useful for conditional output (only rank 0 prints).

Returns

true if rank is 0, false otherwise

Note

This function is thread-safe and has zero overhead (inline)

if (model.is_rank0()) {
    std::cout << "Status message\n";
}

Examples

/home/runner/work/OpenPFC/OpenPFC/include/openpfc/model.hpp, /home/runner/work/OpenPFC/OpenPFC/include/openpfc/simulator.hpp, 03_simulator_workflow.cpp, 04_diffusion_model.cpp, and 05_simulator.cpp.

Here is the caller graph for this function:

step()

virtual void pfc::Model::step ( double  t )

pure virtual

Implemented in PFCModel, and Diffusion.

---

The documentation for this class was generated from the following file:

• openpfc/model.hpp
