from_json.hpp File Reference

JSON deserialization functions for OpenPFC types. More...

#include "errors.hpp"
#include "json_helpers.hpp"
#include "openpfc/boundary_conditions/fixed_bc.hpp"
#include "openpfc/boundary_conditions/moving_bc.hpp"
#include "openpfc/core/world.hpp"
#include "openpfc/fft.hpp"
#include "openpfc/field_modifier.hpp"
#include "openpfc/initial_conditions/constant.hpp"
#include "openpfc/initial_conditions/file_reader.hpp"
#include "openpfc/initial_conditions/random_seeds.hpp"
#include "openpfc/initial_conditions/seed_grid.hpp"
#include "openpfc/initial_conditions/single_seed.hpp"
#include "openpfc/model.hpp"
#include "openpfc/time.hpp"
#include <algorithm>
#include <cctype>
#include <heffte.h>
#include <stdexcept>

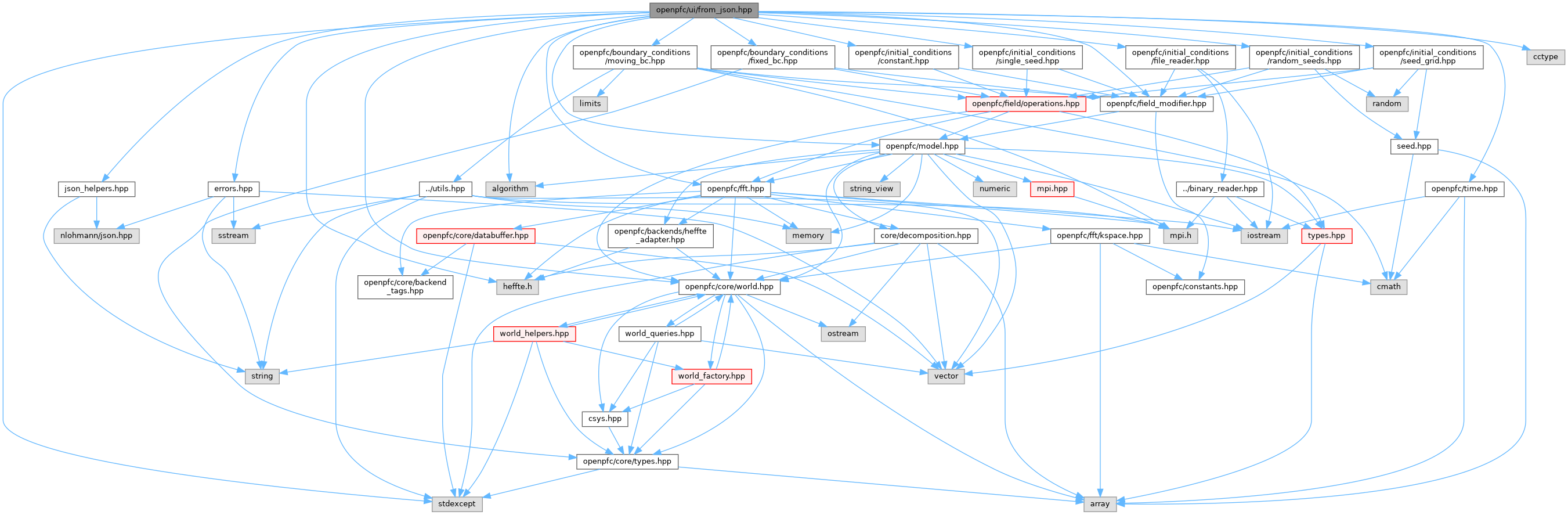

Include dependency graph for from_json.hpp:

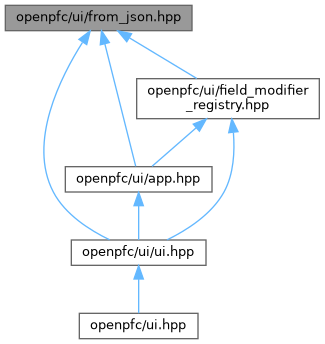

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
template<class T >
T	pfc::ui::from_json (const json &settings)
template<>
fft::Backend	pfc::ui::from_json< fft::Backend > (const json &j)
	Converts a JSON string to fft::Backend enum.
template<>
heffte::plan_options	pfc::ui::from_json< heffte::plan_options > (const json &j)
	Converts a JSON object to heffte::plan_options.
template<>
World	pfc::ui::from_json< World > (const json &j)
template<>
Time	pfc::ui::from_json< Time > (const json &settings)
void	pfc::ui::from_json (const json &j, Constant &ic)
void	pfc::ui::from_json (const json &j, SingleSeed &seed)
void	pfc::ui::from_json (const json &j, RandomSeeds &ic)
void	pfc::ui::from_json (const json &j, SeedGrid &ic)
void	pfc::ui::from_json (const json &j, FileReader &ic)
void	pfc::ui::from_json (const json &j, FixedBC &bc)
void	pfc::ui::from_json (const json &j, MovingBC &bc)
void	pfc::ui::from_json (const json &, Model &)

Detailed Description

JSON deserialization functions for OpenPFC types.

This header provides template specializations and overloads for converting JSON objects into OpenPFC types. It handles:

• World configuration (domain size, spacing, origin)
• Time stepping parameters
• Initial conditions (constant, seeds, file input)
• Boundary conditions (fixed, moving)
• FFT backend options
• Model parameters

Author

OpenPFC Development Team

Date

2025

Function Documentation

from_json< fft::Backend >()

template<>

fft::Backend pfc::ui::from_json< fft::Backend > ( const json &  j )

inline

Converts a JSON string to fft::Backend enum.

Parses backend selection from configuration. Supported values:

• "fftw" or "FFTW": CPU-based FFT (always available)
• "cuda" or "CUDA": GPU-based FFT using cuFFT (requires OpenPFC_ENABLE_CUDA)

Parameters

j	The JSON object to parse (looks for "backend" field)

Returns

The fft::Backend enum value

Exceptions

std::runtime_error

if backend is not supported or not compiled in

from_json< heffte::plan_options >()

template<>

heffte::plan_options pfc::ui::from_json< heffte::plan_options > ( const json &  j )

inline

Converts a JSON object to heffte::plan_options.

This function parses the provided JSON object and constructs a heffte::plan_options object based on the values found in the JSON. The function prints debug information to the console regarding the options being parsed.

Parameters

j	The JSON object to parse.

Returns

The heffte::plan_options object constructed from the JSON.

Here is the call graph for this function:

from_json< World >()

template<>

World pfc::ui::from_json< World > ( const json &  j )

inline

Creates a World object from a JSON input.

Parameters

j

A JSON object containing the following fields: Lx (int): The number of grid points in the x direction. Ly (int): The number of grid points in the y direction. Lz (int): The number of grid points in the z direction. dx (float): The grid spacing in the x direction. dy (float): The grid spacing in the y direction. dz (float): The grid spacing in the z direction. origin (string): The origin of the coordinate system. Must be one of "center" or "corner".

Returns

A World object.

Exceptions

std::invalid_argument

if any of the required fields are missing or have an invalid value.

Here is the call graph for this function:
