discrete_field.hpp File Reference

Discrete field representation with physical coordinate mapping. More...

#include "array.hpp"
#include "constants.hpp"
#include "openpfc/core/world.hpp"
#include "utils/show.hpp"
#include <array>
#include <cmath>
#include <cstddef>
#include <functional>
#include <ostream>

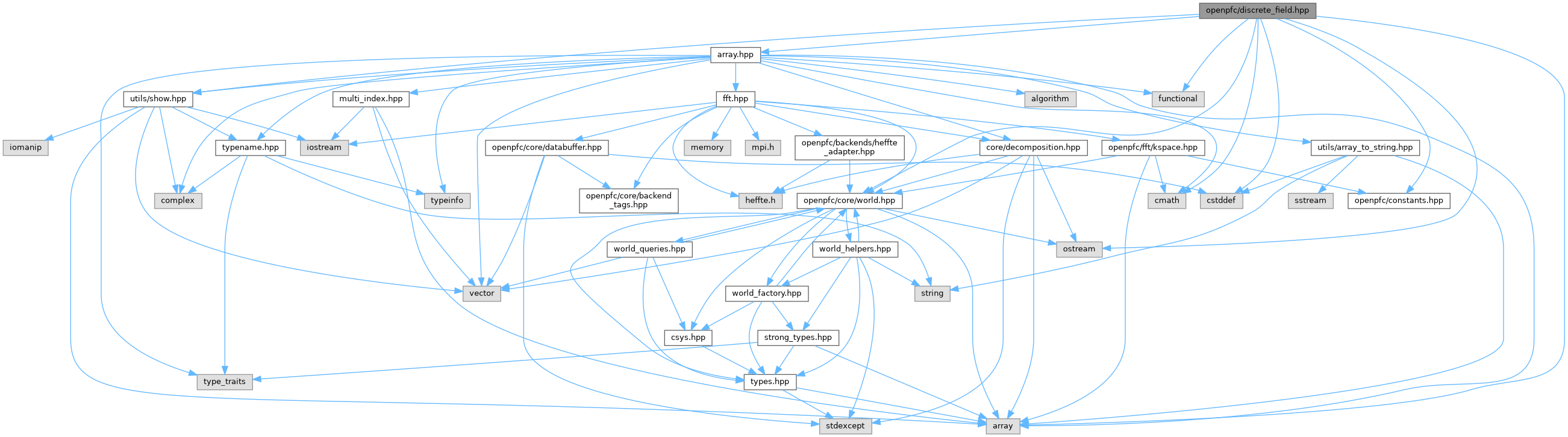

Include dependency graph for discrete_field.hpp:

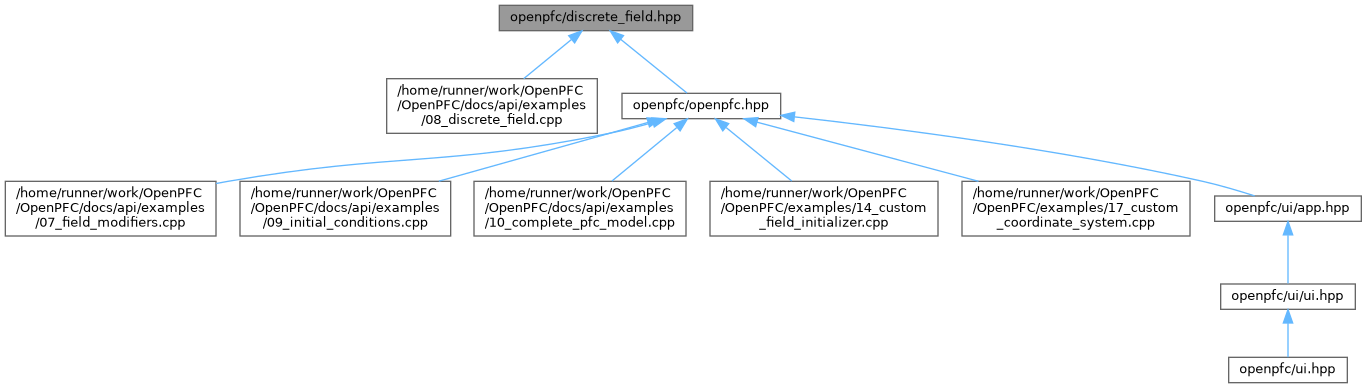

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	pfc::DiscreteField< T, D >

Functions
template<typename T , size_t D>
T &	pfc::interpolate (DiscreteField< T, D > &field, const std::array< double, D > &coordinates)
template<typename T , size_t D>
const T &	pfc::interpolate (const DiscreteField< T, D > &field, const std::array< double, D > &coordinates)
template<typename T , size_t D, typename Function >
void	pfc::apply (DiscreteField< T, D > &field, Function &&func)
	Apply function to discrete field.
template<typename T , size_t D>
void	pfc::show (DiscreteField< T, D > &field)

Detailed Description

Discrete field representation with physical coordinate mapping.

This file defines the DiscreteField template class, which represents a discretized field with:

• N-dimensional array storage (via Array<T, D>)
• Physical coordinate system (origin, discretization, bounds)
• Interpolation capabilities (nearest-neighbor)
• Coordinate ↔ index transformations
• Field operations (apply functions to all points)

DiscreteField bridges the gap between:

• Discrete grid indices (integer coordinates)
• Physical space coordinates (real-valued positions)

Typical usage:

// Create 3D field with 64³ points
pfc::DiscreteField<double, 3> field(
    {64, 64, 64},           // dimensions
    {0, 0, 0},              // offset
    {0.0, 0.0, 0.0},        // origin
    {1.0, 1.0, 1.0}         // discretization (spacing)
);

// Apply function to all points
field.apply([](double x, double y, double z) {
    return std::sin(x) * std::cos(y);
});

// Interpolate at physical coordinates (using free function - preferred)
double value = pfc::interpolate(field, {0.5, 1.2, 0.8});

This file is part of the Utilities module, providing convenient field manipulation for initial conditions, post-processing, and analysis.

See also

array.hpp for underlying storage implementation

core/world.hpp for coordinate system abstraction

initial_conditions/ for usage examples in ICs

Author

OpenPFC Contributors

Date

2025

Function Documentation

apply()

template<typename T , size_t D, typename Function >

void pfc::apply	(	DiscreteField< T, D > &	field,
		Function &&	func
	)

Apply function to discrete field.

Parameters

field	The discrete field.
func	The function to apply.
