pfc::DiscreteField< T, D > Class Template Reference

Public Types
using	FunctionND = std::function< T(std::array< double, D >)>
using	Function1D = std::function< T(double)>
using	Function2D = std::function< T(double, double)>
using	Function3D = std::function< T(double, double, double)>

Public Member Functions
	DiscreteField (const std::array< int, D > &dimensions, const std::array< int, D > &offsets, const std::array< double, D > &origin, const std::array< double, D > &discretization)
const std::array< double, D > &	get_origin () const
	Constructs a DiscreteField from an Decomposition object.
const std::array< double, D > &	get_discretization () const
const std::array< double, D > &	get_coords_low () const
const std::array< double, D > &	get_coords_high () const
Array< T, D > &	get_array ()
const Array< T, D > &	get_array () const
const MultiIndex< D > &	get_index ()
const MultiIndex< D > &	get_index () const
std::vector< T > &	get_data ()
T &	operator[] (const std::array< int, D > &indices)
	Returns the element at the specified index.
T &	operator[] (size_t idx)
	Returns the element at the specified index.
std::array< double, D >	map_indices_to_coordinates (const std::array< int, D > &indices) const
	Maps indices to coordinates in the field.
std::array< int, D >	map_coordinates_to_indices (const std::array< double, D > &coordinates) const
	Maps coordinates to indices in the field.
bool	inbounds (const std::array< double, D > &coords)
	Checks if the given coordinates are within the bounds of the field.
T &	interpolate (const std::array< double, D > &coordinates)
	Interpolate field value at physical coordinates (nearest-neighbor)
void	apply (FunctionND &&func)
	Applies the given function to each element of the field.
void	apply (Function1D &&func)
	Applies the given 1D function to each element of the field.
void	apply (Function2D &&func)
	Applies the given 2D function to each element of the field.
void	apply (Function3D &&func)
	operator std::vector< T > & ()
	Convert DiscreteField<T, D> to std::vector<T>
	operator std::vector< T > & () const
const std::array< int, D > &	get_size () const
	Get the size of the field.
const std::array< int, D > &	get_offset () const
void	set_data (const std::vector< T > &data)

Friends
std::ostream &	operator<< (std::ostream &os, const DiscreteField< T, D > &field)
	Outputs the discrete field to the specified output stream.

Detailed Description

template<typename T, size_t D>
class pfc::DiscreteField< T, D >

Examples

Using.

Member Function Documentation

apply() [1/3]

template<typename T , size_t D>

void pfc::DiscreteField< T, D >::apply ( Function1D &&  func )

inline

Applies the given 1D function to each element of the field.

The function must be invocable with (double) and return a type convertible toT.

Template Parameters

Function1D

The type of the 1D function.

Parameters

func	The 1D function to apply.

Here is the call graph for this function:

apply() [2/3]

template<typename T , size_t D>

void pfc::DiscreteField< T, D >::apply ( Function2D &&  func )

inline

Applies the given 2D function to each element of the field.

The function must be invocable with (double, double) and return a type convertible toT.

Template Parameters

Function2D

The type of the 2D function.

Parameters

func	The 2D function to apply.

Here is the call graph for this function:

apply() [3/3]

template<typename T , size_t D>

void pfc::DiscreteField< T, D >::apply ( FunctionND &&  func )

inline

Applies the given function to each element of the field.

The function must be invocable with std::array<double, D> and return a type convertible to T.

Template Parameters

FunctionND

The type of the function.

Parameters

func	The function to apply.

Here is the call graph for this function:

get_origin()

template<typename T , size_t D>

const std::array< double, D > & pfc::DiscreteField< T, D >::get_origin ( ) const

inline

Constructs a DiscreteField from an Decomposition object.

Parameters

decomp

The Decomposition object.

get_size()

template<typename T , size_t D>

const std::array< int, D > & pfc::DiscreteField< T, D >::get_size ( ) const

inline

Get the size of the field.

Returns

const std::array<int, D>&

inbounds()

template<typename T , size_t D>

bool pfc::DiscreteField< T, D >::inbounds ( const std::array< double, D > &  coords )

inline

Checks if the given coordinates are within the bounds of the field.

Parameters

coords

The coordinates to check.

Returns

True if the coordinates are within the bounds, false otherwise.

interpolate()

template<typename T , size_t D>

T & pfc::DiscreteField< T, D >::interpolate ( const std::array< double, D > &  coordinates )

inline

Interpolate field value at physical coordinates (nearest-neighbor)

Deprecated:

Use pfc::interpolate(field, coords) free function instead. This member function is deprecated and will be removed in v2.0. The free function version provides better consistency with OpenPFC's design philosophy and enables ADL-based extension.

Migration:

// Old (deprecated):
double value = field.interpolate({x, y, z});

// New (preferred):
double value = pfc::interpolate(field, {x, y, z});

Parameters

coordinates

Physical coordinates [x, y, z] to interpolate at

Returns

Reference to the field value at the nearest grid point

See also

pfc::interpolate(DiscreteField&, const std::array<double,D>&)

Here is the call graph for this function:

map_coordinates_to_indices()

template<typename T , size_t D>

std::array< int, D > pfc::DiscreteField< T, D >::map_coordinates_to_indices ( const std::array< double, D > &  coordinates ) const

inline

Maps coordinates to indices in the field.

Parameters

coordinates

The coordinates to map.

Returns

The corresponding indices.

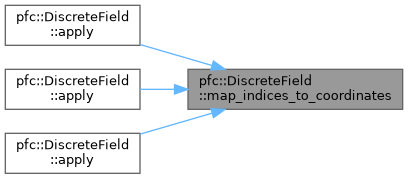

Here is the caller graph for this function:

map_indices_to_coordinates()

template<typename T , size_t D>

std::array< double, D > pfc::DiscreteField< T, D >::map_indices_to_coordinates ( const std::array< int, D > &  indices ) const

inline

Maps indices to coordinates in the field.

Parameters

indices

The indices to map.

Returns

The corresponding coordinates.

Here is the caller graph for this function:

operator std::vector< T > &()

template<typename T , size_t D>

pfc::DiscreteField< T, D >::operator std::vector< T > & ( )

inline

Convert DiscreteField<T, D> to std::vector<T>

Returns

A reference to the underlying data.

operator[]() [1/2]

template<typename T , size_t D>

T & pfc::DiscreteField< T, D >::operator[] ( const std::array< int, D > &  indices )

inline

Returns the element at the specified index.

Parameters

indices

multi-dimensional indices

Returns

T&

operator[]() [2/2]

template<typename T , size_t D>

T & pfc::DiscreteField< T, D >::operator[] ( size_t  idx )

inline

Returns the element at the specified index.

Parameters

idx

Returns

T&

Friends And Related Symbol Documentation

operator<<

template<typename T , size_t D>

std::ostream & operator<< ( std::ostream &  os, const DiscreteField< T, D > &  field  )

friend

Outputs the discrete field to the specified output stream.

Parameters

os	The output stream.
field	The discrete field to output.

Returns

Reference to the output stream.

---

The documentation for this class was generated from the following file:

• openpfc/discrete_field.hpp
