csys.hpp File Reference

Extensible coordinate system framework. More...

#include "types.hpp"

Include dependency graph for csys.hpp:

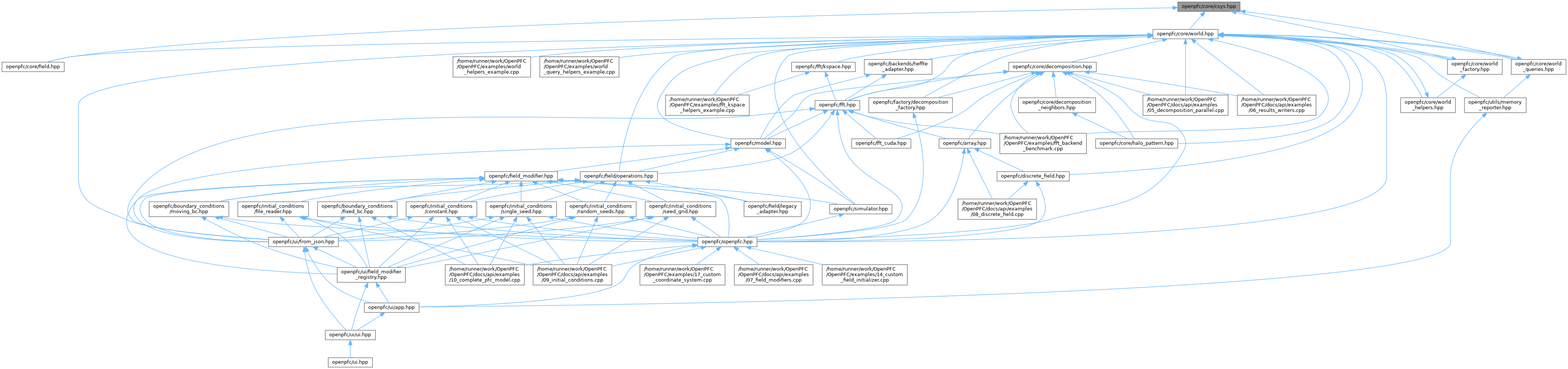

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	pfc::csys::CartesianTag
	Tag type for the 3D Cartesian coordinate system. More...
struct	pfc::csys::CoordinateSystemDefaults< CartesianTag >
	Default parameters for the 3D Cartesian coordinate system. More...
struct	pfc::csys::CoordinateSystem< CartesianTag >
	Specialization of the coordinate system for 3D Cartesian space. More...

Typedefs
using	pfc::csys::CartesianCS = CoordinateSystem< CartesianTag >

Functions
const Real3 &	pfc::csys::get_offset (const CartesianCS &cs) noexcept
	Get the offset of the coordinate system.
double	pfc::csys::get_offset (const CartesianCS &cs, int i)
	Get the offset of the coordinate system in a specific dimension.
const Real3 &	pfc::csys::get_spacing (const CartesianCS &cs) noexcept
	Get the spacing of the coordinate system.
double	pfc::csys::get_spacing (const CartesianCS &cs, int i)
	Get the spacing of the coordinate system in a specific dimension.
const Bool3 &	pfc::csys::get_periodic (const CartesianCS &cs) noexcept
	Get the periodicity of the coordinate system.
bool	pfc::csys::is_periodic (const CartesianCS &cs, int i)
	Check if the coordinate system is periodic in a specific dimension.
const Real3	pfc::csys::to_coords (const CartesianCS &cs, const Int3 &idx) noexcept
	Convert grid indices to physical coordinates.
const Int3	pfc::csys::to_index (const CartesianCS &cs, const Real3 &xyz) noexcept
	Convert physical coordinates to grid indices.

Detailed Description

Extensible coordinate system framework.

This header defines the CoordinateSystem template framework for defining custom coordinate systems (Cartesian, Polar, Cylindrical, etc.) via compile-time specialization.

Each coordinate system specialization provides:

• to_physical(Int3) -> Real3: Convert grid indices to physical coordinates
• to_index(Real3) -> Int3: Convert physical coordinates to grid indices
• Internal parameters (offset, spacing, etc.)

The design uses template specialization rather than inheritance, enabling zero-cost abstractions and user-defined coordinate systems without modifying OpenPFC source code.

#include <openpfc/core/csys.hpp>

// Use Cartesian coordinate system
using Cartesian = pfc::csys::CoordinateSystem<pfc::csys::CartesianTag>;
Cartesian cs({0, 0, 0}, {1.0, 1.0, 1.0});
auto pos = cs.to_physical({10, 20, 30});  // Physical coordinates

See also

core/types.hpp for Int3, Real3 definitions

core/world.hpp for coordinate system integration

Author

OpenPFC Development Team

Date

2025

Function Documentation

get_offset() [1/2]

const Real3 & pfc::csys::get_offset ( const CartesianCS &  cs )

inlinenoexcept

Get the offset of the coordinate system.

Parameters

cs	Coordinate system object.

Returns

The offset of the coordinate system.

Here is the call graph for this function:

Here is the caller graph for this function:

get_offset() [2/2]

double pfc::csys::get_offset ( const CartesianCS &  cs, int  i  )

inline

Get the offset of the coordinate system in a specific dimension.

Parameters

cs	Coordinate system object.
i	Dimension index.

Returns

The offset in the specified dimension.

Exceptions

std::out_of_range

if i is not in [0, 2].

Here is the call graph for this function:

get_periodic()

const Bool3 & pfc::csys::get_periodic ( const CartesianCS &  cs )

inlinenoexcept

Get the periodicity of the coordinate system.

Parameters

cs	Coordinate system object.

Returns

The periodicity flags.

Here is the call graph for this function:

Here is the caller graph for this function:

get_spacing() [1/2]

const Real3 & pfc::csys::get_spacing ( const CartesianCS &  cs )

inlinenoexcept

Get the spacing of the coordinate system.

Parameters

cs	Coordinate system object.

Returns

The spacing of the coordinate system.

Here is the call graph for this function:

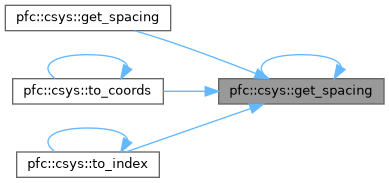

Here is the caller graph for this function:

get_spacing() [2/2]

double pfc::csys::get_spacing ( const CartesianCS &  cs, int  i  )

inline

Get the spacing of the coordinate system in a specific dimension.

Parameters

cs	Coordinate system object.
i	Dimension index.

Returns

The spacing in the specified dimension.

Exceptions

std::out_of_range

if i is not in [0, 2].

Here is the call graph for this function:

is_periodic()

bool pfc::csys::is_periodic ( const CartesianCS &  cs, int  i  )

inline

Check if the coordinate system is periodic in a specific dimension.

Parameters

cs	Coordinate system object.
i	Dimension index.

Returns

True if periodic, false otherwise.

Exceptions

std::out_of_range

if i is not in [0, 2].

Here is the call graph for this function:

Here is the caller graph for this function:

to_coords()

const Real3 pfc::csys::to_coords ( const CartesianCS &  cs, const Int3 &  idx  )

inlinenoexcept

Convert grid indices to physical coordinates.

Parameters

cs	Coordinate system object.
idx	Grid indices.

Returns

The physical coordinates.

Here is the call graph for this function:

Here is the caller graph for this function:

to_index()

const Int3 pfc::csys::to_index ( const CartesianCS &  cs, const Real3 &  xyz  )

inlinenoexcept

Convert physical coordinates to grid indices.

Parameters

cs	Coordinate system object.
xyz	Physical coordinates.

Returns

The grid indices.

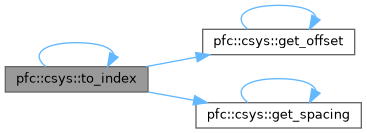

Here is the call graph for this function:

Here is the caller graph for this function:
