Core type definitions for World parameters. More...

#include <array>
#include <stdexcept>

Include dependency graph for types.hpp:

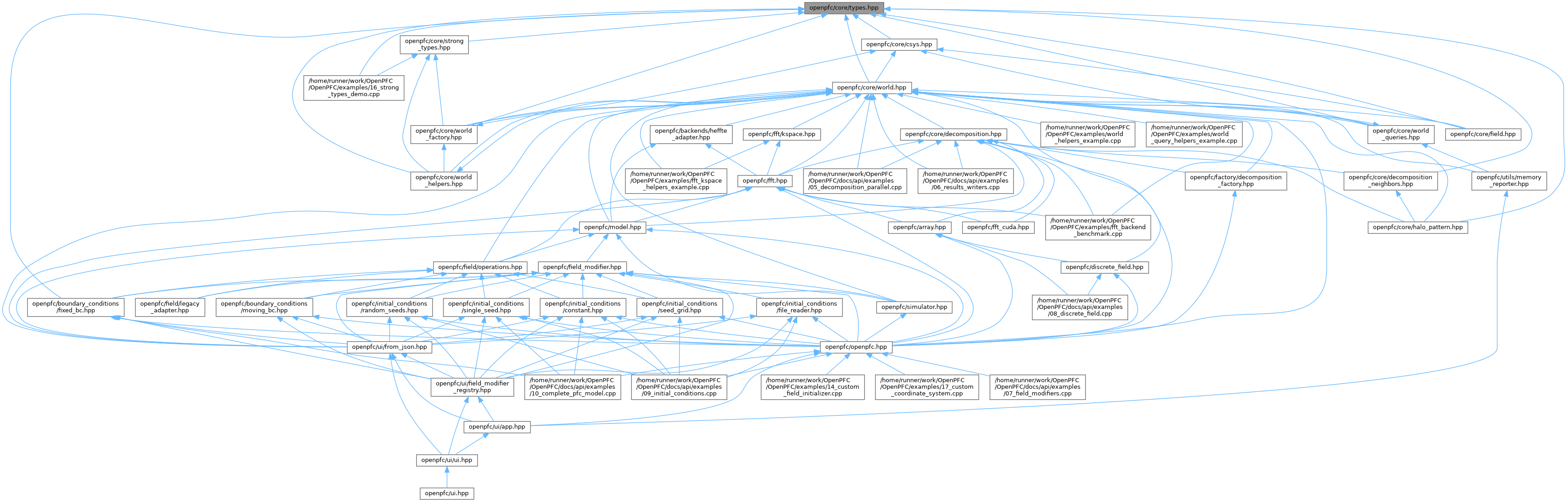

This graph shows which files directly or indirectly include this file:

Classes
struct	pfc::types::Size3
	Represents the size of the 3d simulation domain. More...

struct	pfc::types::Periodic3
	Represents the periodicity of the 3d simulation domain. More...

struct	pfc::types::LowerBounds3
	Represents the lower bounds of the 3d simulation domain. More...

struct	pfc::types::UpperBounds3
	Represents the upper bounds of the 3d simulation domain. More...

struct	pfc::types::Spacing3
	Represents the spacing of the 3d simulation grid. More...

Typedefs
using	pfc::types::Int3 = std::array< int, 3 >
	Type aliases for clarity.

using	pfc::types::Real3 = std::array< double, 3 >

using	pfc::types::Bool3 = std::array< bool, 3 >

using	pfc::Int3 = types::Int3

using	pfc::Real3 = types::Real3

using	pfc::Bool3 = types::Bool3

Functions
const Real3	pfc::types::utils::compute_upper_bounds (const Size3 &size, const LowerBounds3 &lower, const Spacing3 &spacing, const Periodic3 &periodic)
	Computes the upper bounds based on size, lower bounds, and spacing.

Real3	pfc::types::utils::compute_spacing (const Size3 &size, const LowerBounds3 &lower, const UpperBounds3 &upper, const Periodic3 &periodic)
	Computes the spacing based on size, lower bounds, and upper bounds.

Detailed Description

Core type definitions for World parameters.

This header defines the fundamental types used to construct World objects:

Int3, Real3, Bool3: Array aliases for 3D data
Size3: Grid dimensions
Periodic3: Periodicity flags per dimension
LowerBounds3, UpperBounds3: Physical domain bounds
Spacing3: Grid spacing per dimension

These types provide strong typing to prevent confusion between different 3-element arrays (size vs spacing vs bounds), improving code clarity and catching errors at compile time.

#include <openpfc/core/types.hpp>

pfc::types::Size3 size{64, 64, 64};
pfc::types::Spacing3 spacing{1.0, 1.0, 1.0};
pfc::types::Periodic3 periodic{true, true, false};  // Periodic in x, y only

See also: core/world.hpp for usage in World construction; core/csys.hpp for coordinate system integration

Author: OpenPFC Development Team

Date: 2025

Function Documentation

◆ compute_spacing()

Real3 pfc::types::utils::compute_spacing	(	const Size3 &	size,
		const LowerBounds3 &	lower,
		const UpperBounds3 &	upper,
		const Periodic3 &	periodic
	)

Computes the spacing based on size, lower bounds, and upper bounds.

Parameters

size	The size of the simulation domain.
lower	The lower bounds of the simulation domain.
upper	The upper bounds of the simulation domain.
periodic	The periodicity of the simulation domain.

Returns: The computed spacing.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compute_upper_bounds()

const Real3 pfc::types::utils::compute_upper_bounds	(	const Size3 &	size,
		const LowerBounds3 &	lower,
		const Spacing3 &	spacing,
		const Periodic3 &	periodic
	)

Computes the upper bounds based on size, lower bounds, and spacing.
