pfc::FieldModifier Class Reference

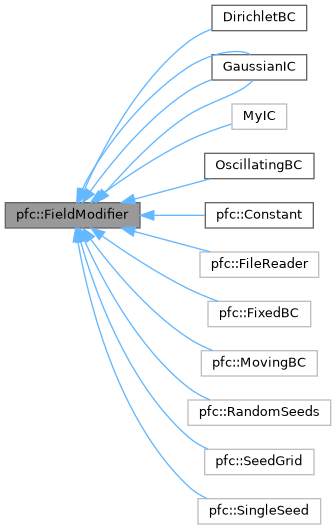

Inheritance diagram for pfc::FieldModifier:

Public Member Functions
void	set_field_name (const std::string &field_name)
const std::string &	get_field_name () const
virtual const std::string &	get_modifier_name () const
	Get the name of the field modifier.
virtual void	apply (Model &model, double time)=0
	Apply the field modification to the model (pure virtual)
virtual	~FieldModifier ()=default
	Destructor for the FieldModifier class.

Detailed Description

Examples

03_simulator_workflow.cpp, 05_simulator.cpp, Accessing, and Space-time.

Constructor & Destructor Documentation

~FieldModifier()

virtual pfc::FieldModifier::~FieldModifier ( )

virtualdefault

Destructor for the FieldModifier class.

The destructor is declared as default, allowing proper destruction of derived classes.

Member Function Documentation

apply()

virtual void pfc::FieldModifier::apply ( Model &  model, double  time  )

pure virtual

Apply the field modification to the model (pure virtual)

This is the main interface method that derived classes must implement to define their modification logic. The method receives full mutable access to the Model and current simulation time, allowing arbitrary modifications.

Implementation Responsibilities:

• Retrieve field(s) via model.get_real_field() or model.get_complex_field()
• Access geometry via model.get_world() and model.get_fft()
• Modify field values according to modifier's purpose
• Handle MPI parallelism (operate on local subdomain)

Typical Implementation Pattern:

void apply(pfc::Model& model, double time) override {
  // 1. Get field to modify
  auto& field = model.get_real_field(get_field_name());

  // 2. Get geometry information
  const auto& world = model.get_world();
  const auto& fft = model.get_fft();
  auto inbox = pfc::fft::get_inbox(fft);

  // 3. Loop over local subdomain
  int idx = 0;
  for (int k = inbox.low[2]; k <= inbox.high[2]; k++) {
    for (int j = inbox.low[1]; j <= inbox.high[1]; j++) {
      for (int i = inbox.low[0]; i <= inbox.high[0]; i++) {
        // Compute modification based on position and/or time
        auto pos = pfc::world::to_coords(world, Int3{i, j, k});
        field[idx++] = compute_value(pos, time);
      }
    }
  }
}

Parameters

model	Mutable reference to the Model containing fields to modify
time	Current simulation time (useful for time-dependent BCs)

Precondition

Model must have the field specified by get_field_name() registered

Postcondition

Field values are modified according to modifier's logic

Note

For initial conditions, time is typically 0.0

For boundary conditions, time reflects current simulation time

Method is called on every MPI rank; each rank operates on its subdomain

Warning

Ensure modifications maintain physical correctness and don't violate model invariants (e.g., mass conservation if required)

See also

Model::get_real_field() for field access

Model::get_world() for domain geometry

Model::get_fft() for subdomain bounds

Implemented in MyIC, GaussianIC, pfc::Constant, pfc::FixedBC, pfc::MovingBC, pfc::FileReader, pfc::RandomSeeds, pfc::SeedGrid, pfc::SingleSeed, GaussianIC, GaussianIC, DirichletBC, and OscillatingBC.

Examples

Accessing, and Space-time.

get_modifier_name()

virtual const std::string & pfc::FieldModifier::get_modifier_name ( ) const

inlinevirtual

Get the name of the field modifier.

This function is responsible for getting the name of the field modifier.

Returns

The modifier name.

Reimplemented in DirichletBC, OscillatingBC, pfc::FixedBC, and pfc::MovingBC.

---

The documentation for this class was generated from the following file:

• openpfc/field_modifier.hpp
