16_strong_types_demo.cpp File Reference

Demonstration of strong type aliases for geometric quantities. More...

#include <iomanip>
#include <iostream>
#include <openpfc/core/strong_types.hpp>
#include <openpfc/core/types.hpp>

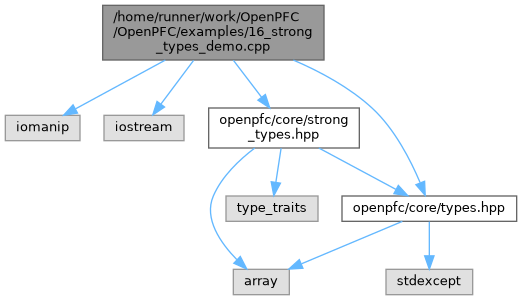

Include dependency graph for 16_strong_types_demo.cpp:

Functions
void	print_domain_info (GridSize size, GridSpacing spacing, PhysicalOrigin origin)
	Print domain information using strong types.
IndexBounds	calculate_subdomain_bounds (GridSize total_size, LocalOffset local_offset, GridSize local_size)
	Calculate subdomain bounds using strong types.
PhysicalCoords	index_to_physical (Int3 index, PhysicalOrigin origin, GridSpacing spacing)
	Map index to physical coordinates.
int	main ()

Detailed Description

Demonstration of strong type aliases for geometric quantities.

This example shows how strong types make code more self-documenting and catch argument order mistakes at compile time.

What You'll Learn

• How to use strong types (GridSize, GridSpacing, PhysicalOrigin)
• Benefits of type safety in function signatures
• Zero-cost abstraction (compiles to same assembly as raw types)
• Backward compatibility with existing code

Key Concepts

Problem: Raw Int3 and Real3 types don't distinguish between different kinds of geometric quantities:

Int3 size = {64, 64, 64};
Int3 offset = {0, 0, 0};
// Easy to confuse! Both are just Int3

Solution: Strong types make the distinction explicit:

GridSize size({64, 64, 64});
LocalOffset offset({0, 0, 0});
// Compiler knows these are different!

Function Documentation

calculate_subdomain_bounds()

IndexBounds calculate_subdomain_bounds	(	GridSize	total_size,
		LocalOffset	local_offset,
		GridSize	local_size
	)

Calculate subdomain bounds using strong types.

This function demonstrates type safety - you cannot accidentally pass spacing where offset is expected.

print_domain_info()

void print_domain_info	(	GridSize	size,
		GridSpacing	spacing,
		PhysicalOrigin	origin
	)

Print domain information using strong types.

Function signature is self-documenting - no need to check docs to understand what each parameter means.

Parameters

size	Grid dimensions
spacing	Physical spacing between grid points
origin	Physical origin of coordinate system

Here is the call graph for this function:
